Inside Modern AUTOSAR Toolchains: Vector and ETAS Explained

Vector Toolchain

Vector Informatik provides one of the most widely used commercial toolchains to develop, configure, integrate, and test AUTOSAR Classic ECUs.

A typical AUTOSAR Classic workflow in the Vector ecosystem involves these major tools and delivered AUTOSAR SW implementation (MICROSAR):

PREEvision — System Architecture & Network Design

• What it does:
  • Model the entire E/E architecture (ECUs, signals, buses, communication matrices).
  • Define SWCs (Software Components) and their interfaces.
  • Configure communication (CAN, LIN, FlexRay, Ethernet).
  • Generate System Description (ARXML) files for each ECU.
• Outputs:
  • AUTOSAR system description ARXMLs (used by DaVinci tools).


DaVinci Developer — Application & RTE Configuration

• Purpose:
  Used mainly by software developers who define and connect AUTOSAR Application Software Components (SWCs).

• Main tasks:
  • Import system description from PREEvision.
  • Develop/modify SWCs and define ports, runnables, events.
  • Configure data mapping between SWCs and RTE.
  • Generate RTE (Runtime Environment) code and header files.

• Outputs:
  • RTE source code.
  • SWC code skeletons.
  • ECU extract ARXML (for DaVinci Configurator Pro).


DaVinci Configurator Pro — ECU-Level Integration & BSW Configuration

• Purpose:

Used by integration engineers to configure and integrate the AUTOSAR Basic Software (BSW) modules and the OS.

• Main tasks:
  • Import ECU Extract ARXML from DaVinci Developer.
  • Configure:

• OS (OSEK/AUTOSAR OS tasks, events)
• Communication stacks (Com, CanIf, PduR, etc.)
• Diagnostic modules (Dcm, Dem)
• Memory (NvM, Fee, Ea)
• IO and MCAL configuration.
• Generate configuration code for MICROSAR BSW.


• Outputs:
  • Configured BSW source code (MICROSAR).
  • Complete ECU-level ARXML.
  • Code ready for compilation.



vVIRTUALtarget — Virtual ECU Generation & PC Simulation

• Purpose:
  Used to create and run virtual ECUs (V-ECUs) on a PC, enabling early testing without real hardware.

• Main tasks:
  • Import configuration and generated code (from DaVinci tools).
  • Combine SWCs + RTE + BSW (MICROSAR) into a PC-executable V-ECU.
  • Optionally integrate with CANoe for network simulation.
  • Support Software-in-the-Loop (SiL) testing and debugging.
• Inputs:
  • ARXMLs and generated code from DaVinci Developer/Configurator.
  • MICROSAR BSW modules.
• Outputs:
  • Virtual ECU executable (V-ECU).
  • CANoe configuration interface.



MICROSAR — AUTOSAR Runtime Software

• What it is:
  Vector’s AUTOSAR Basic Software (BSW) implementation, providing all standard services and communication layers.

• Includes:
  • MICROSAR OS, RTE, COM, PduR, Dcm, NvM, IO, and more.
• What happens here:
  • DaVinci Configurator adapts MICROSAR modules to your specific ECU hardware or virtual target (vVIRTUALtarget).



CANoe / CANape — Simulation, Testing & Calibration

• Purpose:
  Used for system simulation, network testing, and calibration.

• Main tasks:
  • Import ARXML, V-ECU, or real ECU descriptions.
  • Simulate bus communication (CAN, LIN, FlexRay, Ethernet).
  • Perform SiL/HIL testing and CAPL-based automation.
  • CANape connects for measurement and parameter tuning (via XCP/CCP protocols).
• Integration:
  • Import the ARXML and database files to simulate communication.
  • Test RTE signals and BSW behavior.
  • Run virtual ECUs from vVIRTUALtarget inside CANoe.
  • Later, switch to physical ECUs with no software changes.

---

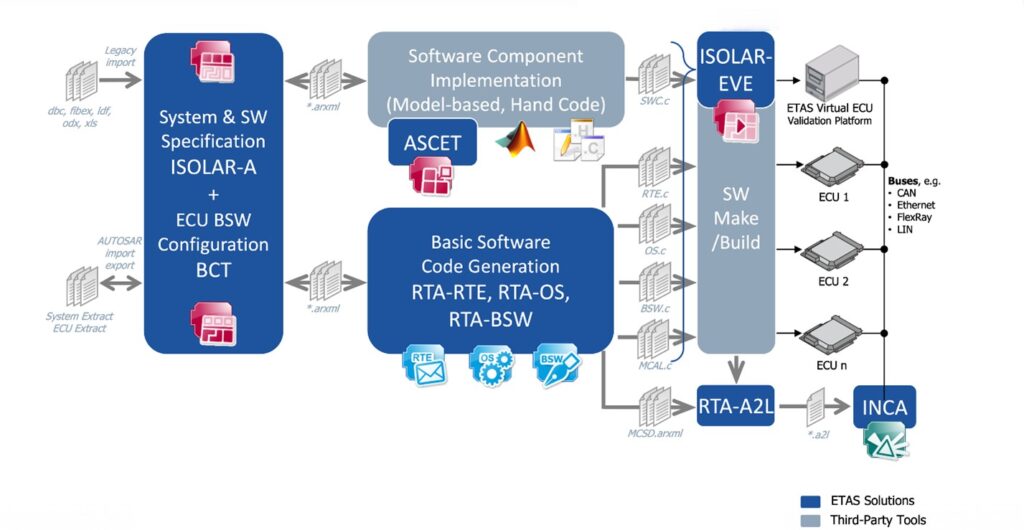

ETAS Toolchain

The ETAS AUTOSAR Classic Platform toolchain supports development of ECUs based on the AUTOSAR standard — covering modeling, configuration, integration, code generation, and testing (both virtual and on-target).

PREEvision (or equivalent) — System & Architecture Design

Note: ETAS often uses PREEvision for system-level design — PREEvision is actually a joint Vector–ETAS product. So the same tool is used at the top level.

• What it does:
  • Model the full E/E architecture (ECUs, signals, buses, SWCs).
  • Define SWCs, ports, and communication interfaces.
  • Generate System Description ARXML for each ECU.
• Outputs:
  • AUTOSAR System Description ARXMLs — input for ISOLAR-A.


ISOLAR-A — SWC Modeling & RTE Configuration

• Purpose:
  Used by application software developers to create and configure AUTOSAR Application Software Components (SWCs).


• Main tasks:
  • Import system description ARXML from PREEvision.
  • Model or edit SWCs (runnables, events, ports, interfaces).
  • Configure connections between SWCs.
  • Generate RTE (Runtime Environment) and SWC skeletons.
  • Perform consistency checks and data mapping.
• Outputs:
  • SWC implementation templates.
  • RTE configuration and source code.
  • ECU Extract ARXML for ISOLAR-B.


ISOLAR-B — ECU Configuration & BSW Integration

• Purpose:
  Used by integration engineers to configure and integrate the AUTOSAR Basic Software (BSW) stack and the OS for a specific ECU.

• Main tasks:
  • Import ECU Extract ARXML from ISOLAR-A.
  • Configure:
    • BSW modules (Com, Dcm, EcuM, NvM, PduR, etc.)
    • OS tasks and events
    • Diagnostic, communication, and memory services
    • Hardware abstraction and MCAL mappings
    • Integrate the RTA-BSW and RTA-OS stacks.
• Outputs:
  • Configured BSW source/config files.
  • Complete ECU-level ARXML.
  • Project ready for code generation and build.



RTA-BSW & RTA-OS — AUTOSAR Basic Software & Operating System

• What it is:
  ETAS RTA (Real-Time Applications) is the AUTOSAR-compliant runtime suite:
  • RTA-BSW: ETAS’s AUTOSAR Basic Software implementation.
  • RTA-OS: Highly efficient AUTOSAR OS (certified for safety up to ASIL-D).
• What they do:
  • Provide AUTOSAR standard services: communication, diagnostics, memory, IO, etc.
  • Ensure real-time performance and deterministic task scheduling.
• Integration:
  ISOLAR-B configures these modules, and code is generated automatically for compilation or virtualization.

• Outputs:
  • Source and header files for BSW and OS.
  • Build-ready AUTOSAR software stack.



VEOS — Virtual ECU Simulation (SiL)

• Purpose:
  ETAS VEOS provides a virtual execution environment for AUTOSAR ECUs, allowing you to test your ECU software on a PC without real hardware.

• Main tasks:
  • Import the same ARXMLs and generated code from ISOLAR-A/B.
  • Build a Virtual ECU (V-ECU) identical in configuration to the real ECU.
  • Execute the ECU software (SWCs + RTE + BSW + OS) on the PC.
  • Integrate multiple virtual ECUs for system-level simulation.
• Integration:
  • Connects with INCA (for measurement and calibration) and LABCAR-OPERATOR (for HIL).
  • Enables Software-in-the-Loop (SiL) testing and validation.
• Outputs:
  • V-ECU executables and simulation configuration.



INCA — Measurement, Calibration & Testing

• Purpose:
  ETAS INCA is used for measurement, calibration, and diagnostics on real or virtual ECUs.

• Main tasks:
  • Communicate with ECUs via XCP/CCP or FETK interfaces.
  • Measure signals and parameters in real time.
  • Adjust calibration parameters and store calibration data (A2L/HEX).
  • Integrate with VEOS for virtual calibration.
• Integration:
  • Works seamlessly with both VEOS (V-ECU) and physical ECUs.
  • Can also be connected to LABCAR for HIL environments.



Conclusion

The combination of Vector and ETAS toolchains provides a complete and reliable ecosystem for AUTOSAR Classic development — from system design and configuration to integration, testing, and validation. Each toolchain offers strengths that suit different engineering needs, but both enable teams to build scalable, compliant, and production-ready automotive software.

As the complexity of mobility systems continues to grow, choosing the right tooling environment becomes essential for development efficiency, safety alignment, and long-term maintainability. Understanding how these toolchains complement the AUTOSAR workflow empowers engineering teams to deliver high-quality software with confidence.
